Exercise #7: Ghosted Display Mode
tog_minusChange the Top View to Ghosted Display

For spheres drawn from the top view, it is best viewed using the ghosted display.

1.Activate the Top View Top View tab tab by selecting anywhere in the viewport.

2.Select the View View menu - Display Toolbar menu from the View Toolbar and then select Ghosted Display. Note: The View Toolbar will only display in the active viewport.

decor-53

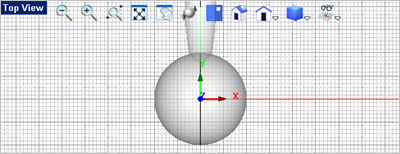

The display should now look like this:

decor-20
