Thread Milling, 2½ Axis
Thread Milling can be used to cut threads using a thread mill. The pitch is defined in the thread mill tool definition. Different options in the thread milling include internal or external threads, right or left threads. The thread can be cut in a single pass or multiple passes with a step over distance.
 2½ Axis Thread Milling |

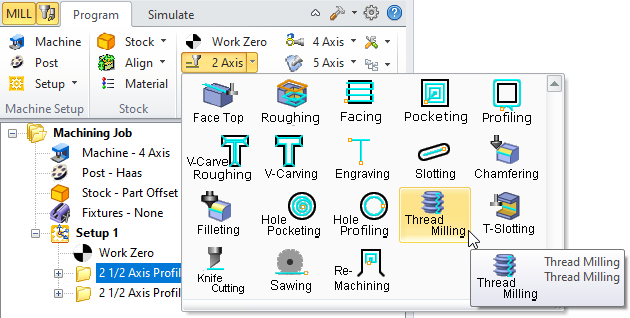

The Thread Milling toolpath method is invoked by selecting the Program tab, clicking on the 2½ Axis button in the Machining Browser and selecting the Thread Milling Operation.  2½ Axis Thread Milling Menu Item |
This section describes the various parameters that you can set to execute this machining operation. The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: 2½ Axis Thread Milling |
