The Helical/Spiral section of the PPG defines how all helical and spiral motions are defined. The only difference between an arc and a helix is that a helix has a Z value (i.e., pitch). In fact, a helix is defined using the Arc G-Code with the added Z value. We strongly recommended that you first read the PPG > Circle section above to understand how arcs are defined before continuing.

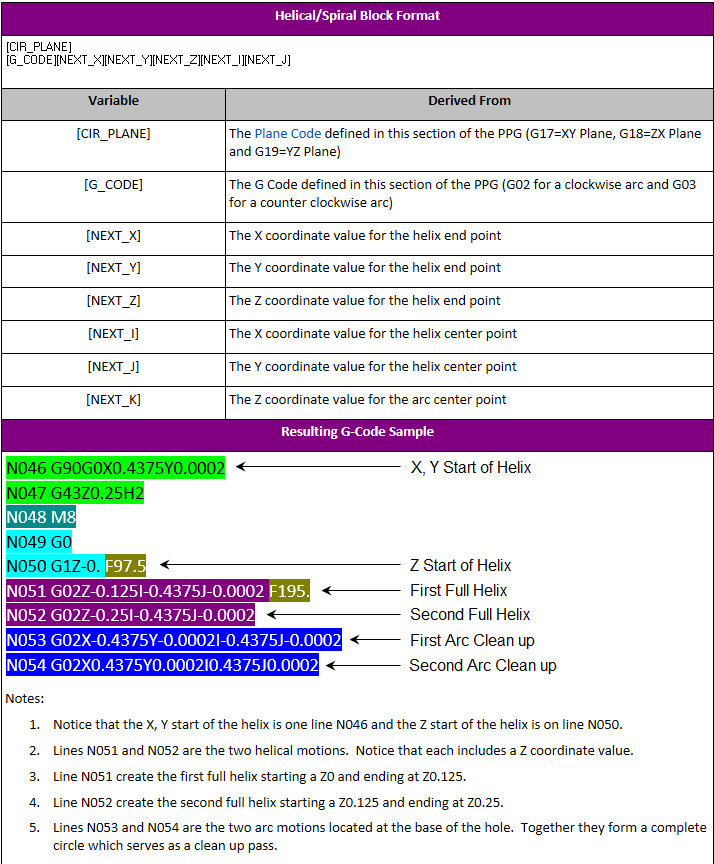

This is the color code for the Helical/Spiral section.

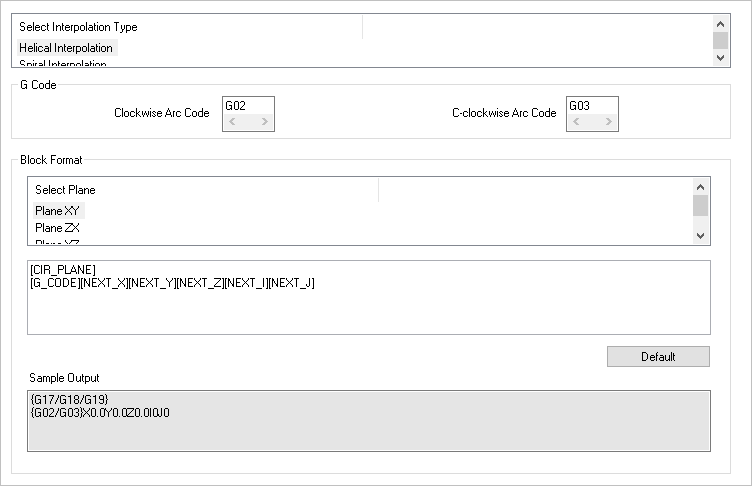

The Helical/Spiral section of the Post-Processor Generator (PPG) dialog for our haas-blog.spm post definition file.
