The Feed Rate section of the PPG defines the block format for Feed Rate. The Feed Rate Block is inserted only when the feed rate changes if Feedrate is checked under Modal Output in the General section of the PPG. You can also set the High and Low values for Feedrate here as well as other parameters related to feed rate.

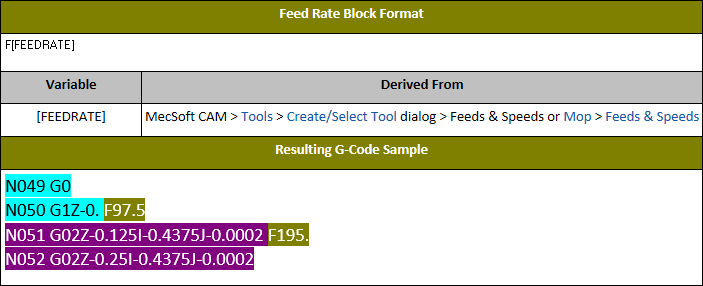

This is the color code for the Feed Rate section.

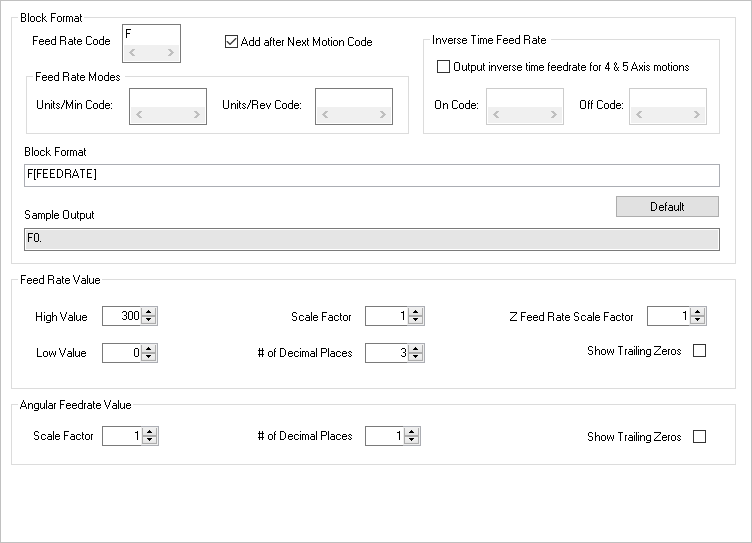

The Feed Rate section of the Post-Processor Generator (PPG) dialog for our haas-blog.spm post definition file.
