PPG Editor

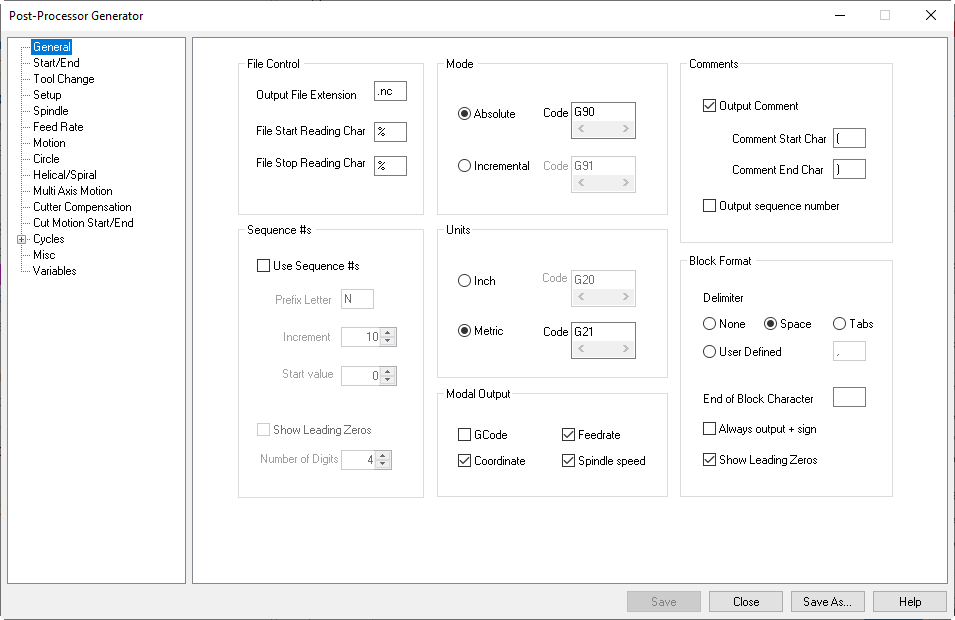

The RhinoCAM Post-Processor Generator (PPG) Editor is shown below. This Editor is divided into sections (listed on the left) allowing you to define each block type. Refer to the list of sections below.



tog_minusDialog Box: Post Processor Generator: Editor
Dialog Box: Post Processor Generator: Editor

Dialog Box: Post Processor Generator: Editor
tog_minusPPG Editor Sections

•General
This folder helps you set up file information, G-Code format, mode and the units of operation.

•Start End
Start and End code specifier.

•Tool Change
Load and Tool Change Macro specifier.

•Setup
Setup change and Rotate Table Setup specifier.

•Spindle
Spindle code specifier.

•Feed Rate
Feed Rate specifier.

•Motion
Motion block specifier

•Circle
Circle block specifier.

•Helical/Spiral
Helical and Spiral motion block specifier.

•Multi Axis Motion
Multi Axis Motion specifier.

•Cutter Compensation
Motion blocks for Cutter Compensation Right, Left and Off.

•Cut Motion Start/End
Cut Motion Start and End macro blocks.

•Cycles
Cycle G-Code and format specifier.

•Miscellaneous
Coolant and Compensation code specifier

•Variables
Lists variables and their values used in post-processing
