The Spindle section of the PPG defines the Spindle Block variable [SPINDLE_BLK]. It is also used to set the High and Low values for the Spindle RPM. These values will not be exceeded regardless of the tool or toolpath parameters. This section also defines the Spindle Direction and other spindle related values.
This is the color code for the Spindle section.

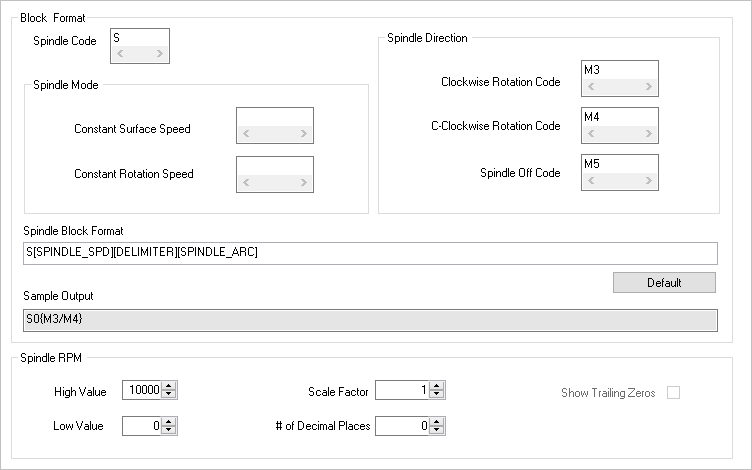

The Spindle section of the Post-Processor Generator (PPG) dialog for our haas-blog.spm post definition file.
