Knife Cutting, 2½ Axis
This method can be used for cutting a variety of different materials using a Drag Knife tool such as fabric, leather and laminates. A Swivel Angle Limit controls when the tool retracts prior to performing a swivel (i,e, rotation) at corners.

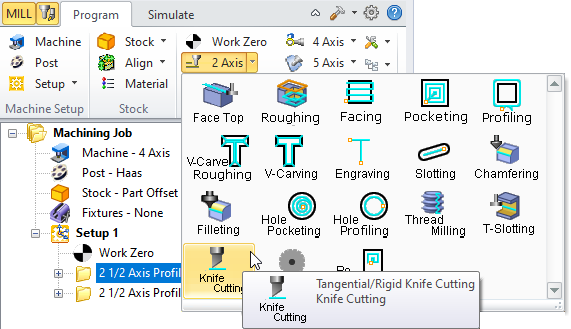

The Drag Knife Cutting toolpath method is invoked by selecting the Program tab, clicking on the 2½ Axis button in the Machining Browser and selecting the Drag Knife Cutting operation.  2½ Axis Knife Cut Menu Item |

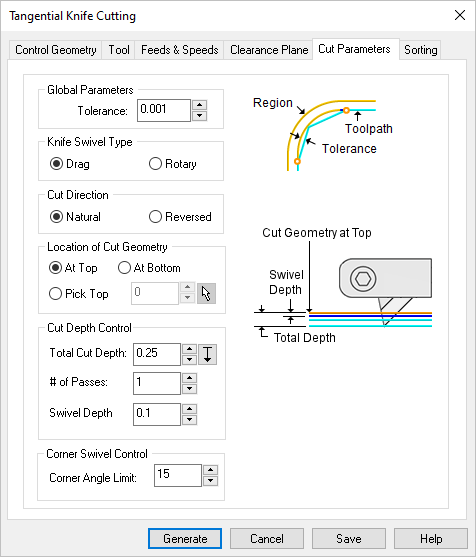

This section describes the various parameters that you can set to execute this machining operation. The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: 2½ Axis Knife Cutting |
