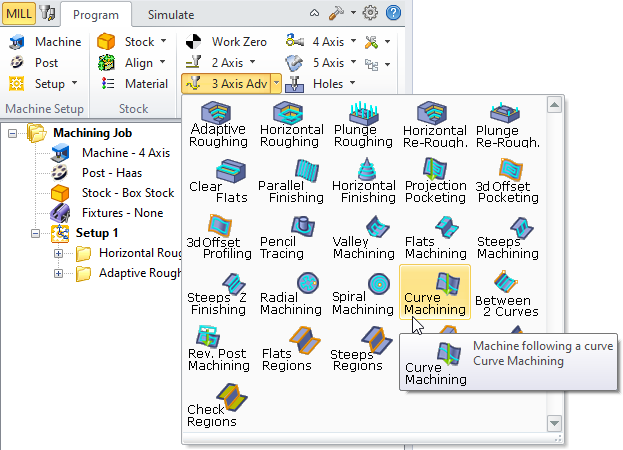

<< Click to Display Table of Contents >> Navigation:  MILL Module > Creating 3 Axis Advanced Operations > 3 Axis Curve Machining, 3 Axis

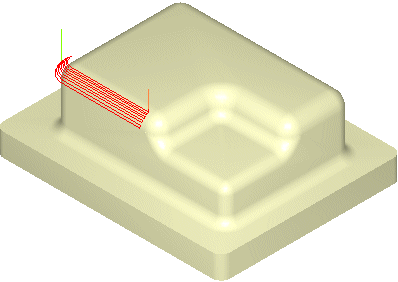

The Curve Machining operation can be used for fine finishing in closed regions. In this method, the toolpath can be generated on the curve, along the curve or across the curve. Machining regions are necessary to be active for this cut method to work. There is no limitation on the number of regions or the number of nesting’s of the region.

As the cutter follows these linear cuts, it can either form a Zig or ZigZag cut pattern. In the Zig cut pattern, the cutter always goes in a constant direction while in the ZigZag cut pattern, the cutting direction alternates between two successive linear cuts. The cutter can be made to follow either or both sides of the curve.
