The Reverse Post Milling operation can be used to create machining operations with existing CLS files or ISO-G code files. You can simply load these files in or use the loaded toolpath and project the cutter down to surfaces below.

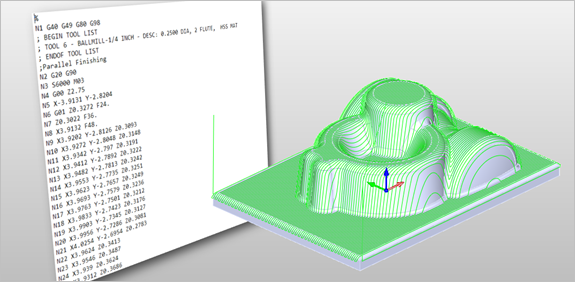

 Reverse Post Machining, 3 Axis |

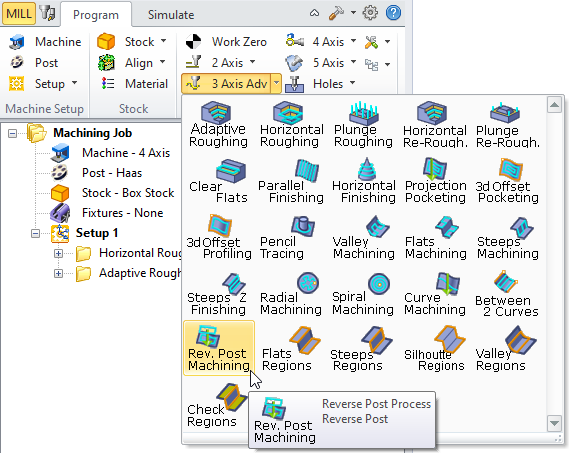

The Reverse Post Machining toolpath method is invoked by selecting the Program tab, clicking on the 3 Axis Adv button in the Machining Browser and selecting the Rev. Post Machining Operation.  Reverse Post Machining, 3 Axis Menu Item |
The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: Reverse Post Machining, 3 Axis |
