<< Click to Display Table of Contents >> Navigation: MILL Module > Overview of Machining Methods > 3 Axis Advanced Operations > 3 Axis Advanced Control Matrix |
Available in: |
Xpress |
Standard |
Expert |
Professional |
Premium |

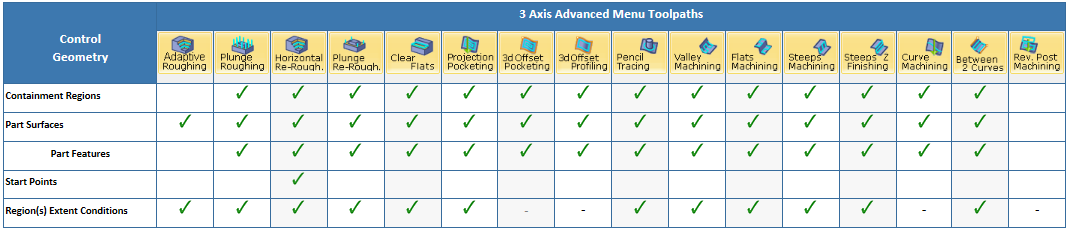

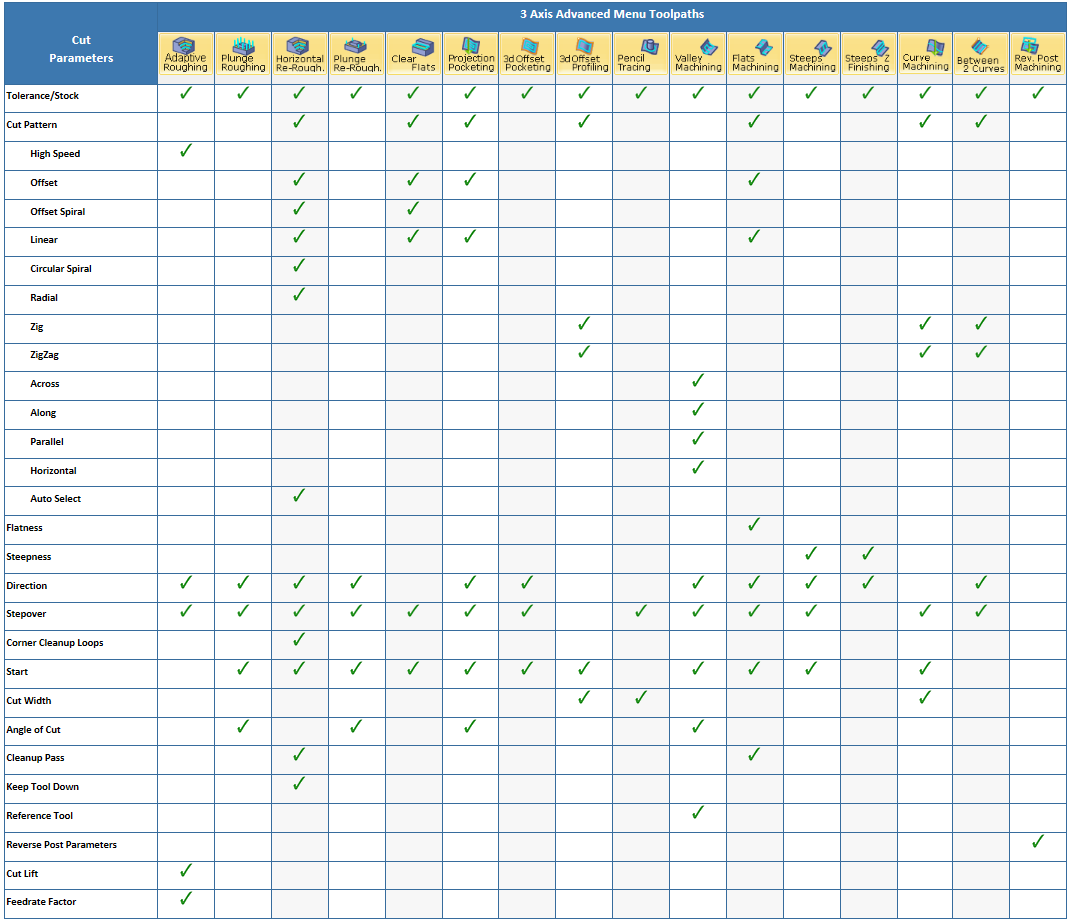

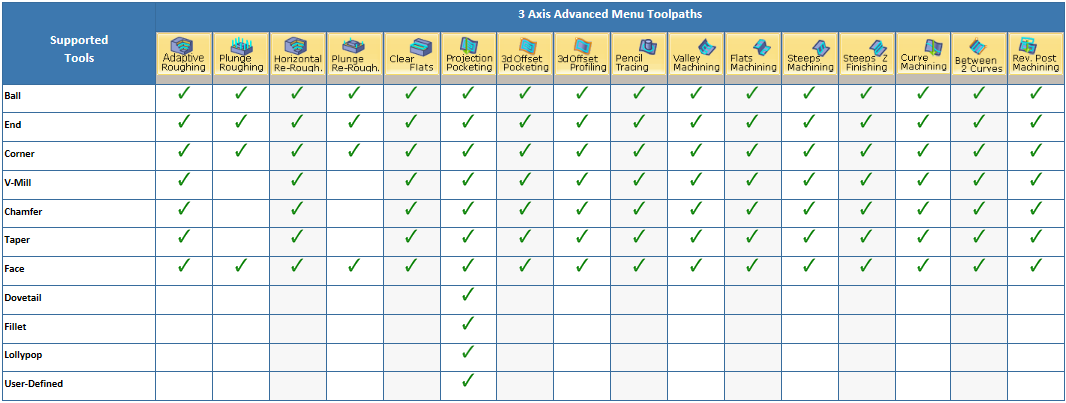

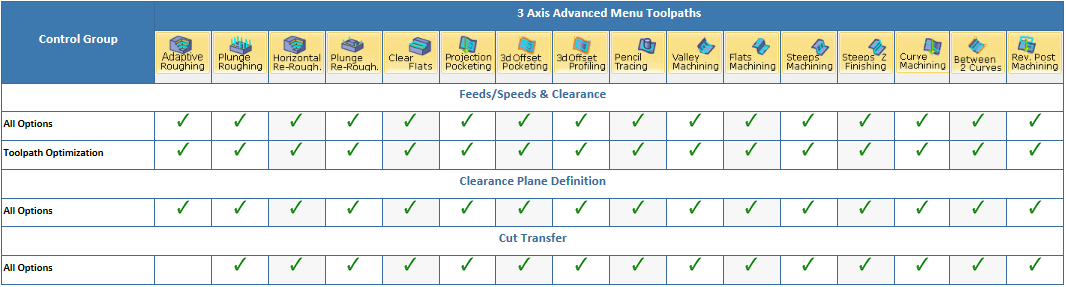

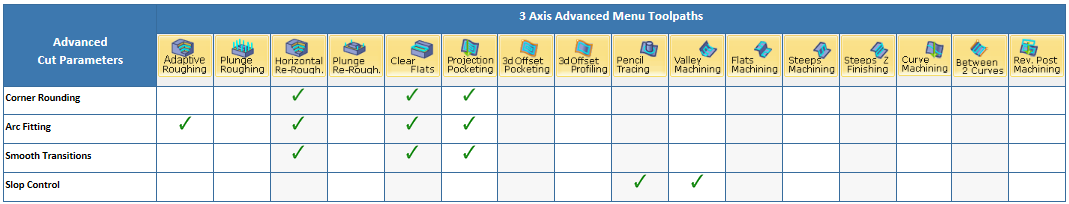

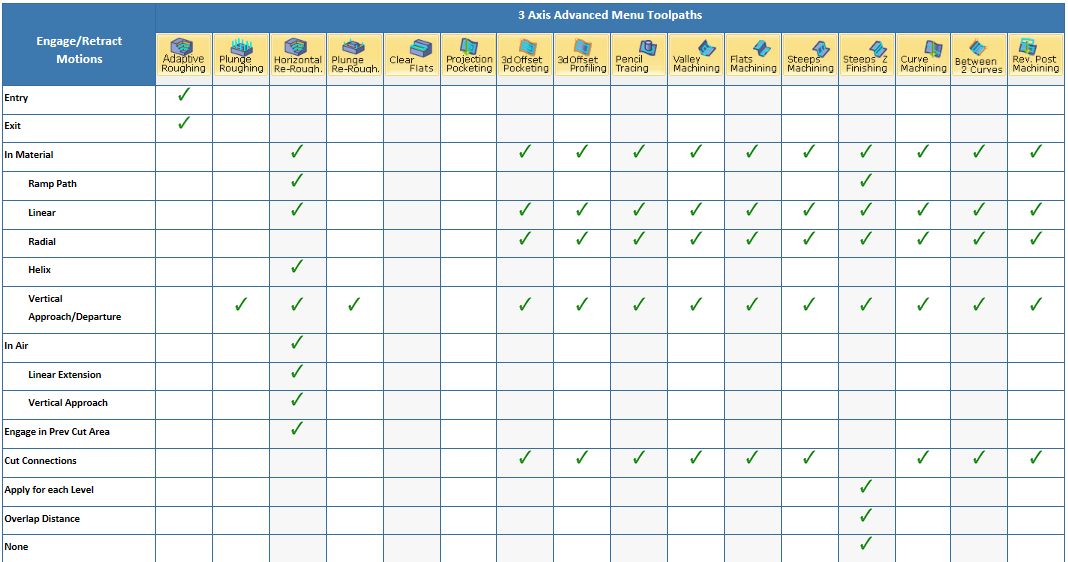

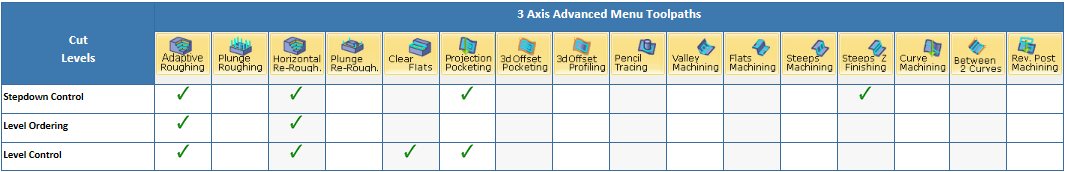

The following matrix tabulates each 3 Axis Advanced operation type and its control parameters, supported tool types, etc. Note that each row under in each Control Group column item may encompass more than one parameter!
|
|
|
|
|
|
|
