Here you can set Toolpath related preferences including colors, display, format and feedrate. You can use the Reset to defaults button if you want to revert to the default factory install settings.
|
click

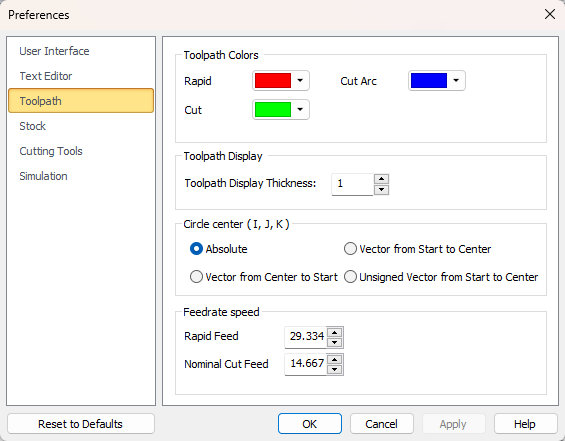

 Preferences > Toolpath |
You can specify the default colors to graphically display Rapid, Linear and Arc moves. Use the color selector available for each.  Toolpath Display Color Preferences |
Here you can set the line thickness for the display of all toolpaths.
|
I,J,K refers to the center point location for arc motions. In this section you can define how arc motions are formatted in the output G-Code file. Select from the following options: •Absolute •Vector from Center to Start •Vector from Start to Center •Unsigned Vector from Start to Center |
Here you can specify feedrate values for the G-Code file. Select from the following: •Rapid Feed •Nominal Cut Feed |
