Optimized machining is used when you want to maintain almost constant scallop height during machining with the Horizontal Finishing method. In this method, machining takes place in constant Z planes spaced a constant Z distance from each other. Due to this constant Z spacing, machining relatively flat areas will leave areas un-machined. The size of these un-machined areas increases with the degree of the flatness.
Optimized machining automatically recognizes these flat areas and inserts projection toolpaths, similar to 3 Axis Projection Pocketing to clean out un-machined areas. This is a highly effective way of maintaining almost uniform scallop height on the part. You have Stepover Control of the spacing of these optimized pocket toolpaths as well as Engage/Retract control for these pocket toolpaths. From the MecSoft Tech Blog: Optimized XY Machining.
Retracts are minimized when Optimized XY machining between levels is checked.
|
It should be noted that

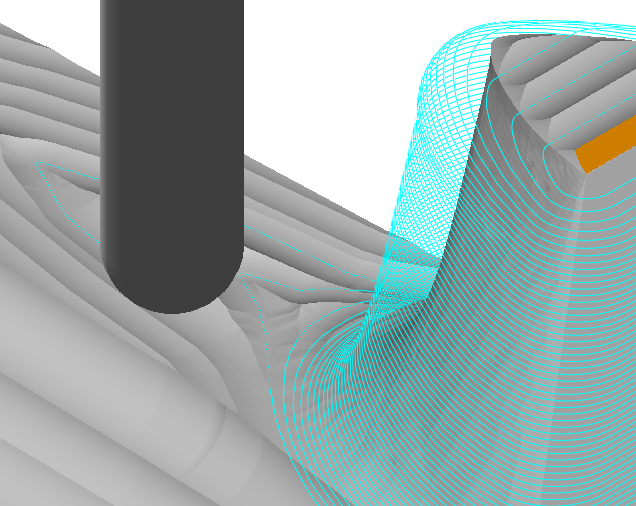

 Optimized Machining Off

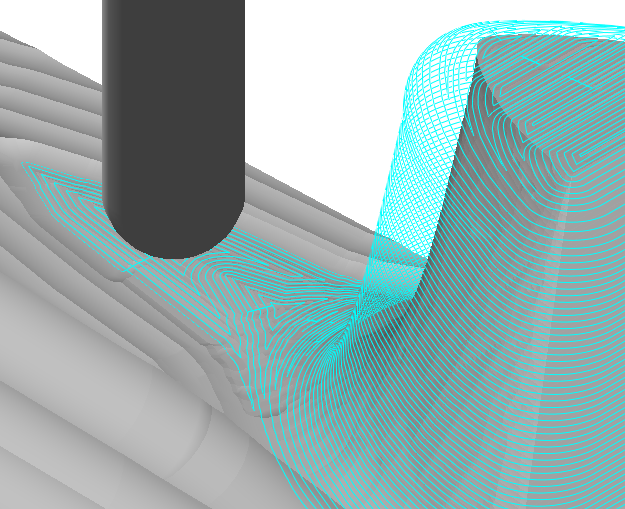

 Optimized Machining On |

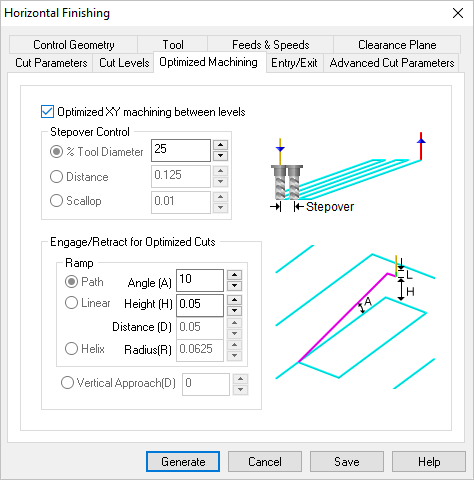

 Dialog Box: Optimized Machining tab, Horizontal Finishing, 3 Axis |
Check this box to enable Optimized XY Machining between Levels and activate the following Stepover and Engage/Retract controls. |
 Stepover Control, 3 Axis Operations This allows you to define the spacing between the cuts. Select from the following options: % Tool Diameter Distance Scallop (not available for all operations) |
This section allows you to define how the cutter would engage into material when forced into such a situation. This can happen when machining a cavity or pocket. You have the option to Ramp the cutter or engage in a Vertical Approach (D). The ramp engage motion will typically be used when machining with a flat or corner-radius end mills. In the ramp option, the cutter can ramp in one of the following 3 ways:
