Network Locked License Service is a security process required when a computer on a network tries to connect to the server in order to use its resources. If the user's identity has been stored by the server, entering a valid username and password completes the connection. In this method, the license is "locked" to this network only.

Using Network Locked License Server

Check this box to enable the Network Locked License Service.  Then complete the Service Server Settings provided below.

Server IP Address

For Network Authentication, enter the Service Server's IP Address here.

Server Port #

For Network Authentication, enter the Service Server's Port # here.

Test Connection

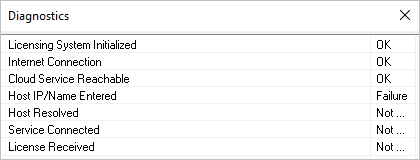

Test the connection to the license service server (IP Address or Name) that you have specified in this dialog. A Diagnostics dialog will display with the test results. In the example, the test failed because the IP address of the host could not be reached.

Proxy Server Settings need to be set if your computer or network is behind a proxy.  A proxy server is a computer that acts as an intermediary between the user's computer and the Internet.  It allows client computers to make indirect network connections to other network services.

Using Proxy Server

Check this box to enable Proxy Server Settings and complete ALL of the following fields accurately.  This information would be provided by your network administrator.

Proxy IP Address

This is the IP Address for your Proxy Server.  This information would be provided by your network administrator.

Proxy Port #

Enter the Port Number for your Proxy Server.  This information would be provided by your network administrator.

Proxy User Name

Enter the Proxy Server user name.  This information would be provided by your network administrator.

Proxy Password

Enter your Proxy Server password.  This information would be provided by your network administrator.

Here are some troubleshooting messages that you may encounter.

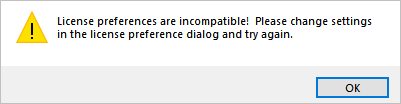

If you have node locked license activated and you select Using Lan Daemon, this will display the following message and release your node locked license.

If Using Lan Daemon is checked and you are entering a valid node locked activation code in the license dialog, the following message is displayed.  Make sure Using Lan Daemon is unchecked before activating a node-locked license.
